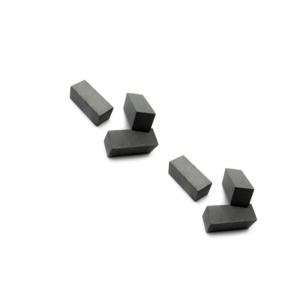

Manufacturer Of Tungsten Carbide Plates, K20 / K30 / K10 Carbide Flat Bar / Tungsten Carbide Plates
Applications:
Carbide strips are widely used for general wood cutters / hard wood cutters, plastic and tobacco cutting.
And it is suitable for the production of various types of motors, electronic progressive dies punches.
Tungsten Carbide - Main Property:
1. Excellent Hardness: 86~93 HRA, which equal to 68~81HRC;
2. Excellent hot working performance: Hardness could be remained at 60 HRC under 900~1000 ℃
3. Excellent wear resistance;
4. High cutting speed;
5. Long service life
Cemented Carbide Strips/bars Specification:
| Grade | Chemical Composition (%) | Hardness HRA ± 0.3 | Density g/cm³ ± 0.1 | TRS n/mm³ | Grain Size μm | Applications recommended |
| Co |
| K20 | 6 | 91.5 | 14.92 | 2200 | 1.2~2.0 | Semi-finishing and finishing of cast irons,non-ferrous metal & alloys and non metallic materials at medium cutting speed. |
| K10 | 6 | 92.5 | 14.90 | 2400 | 0.8 | Machining of chilled alloy cast irons and refractory alloy steel of finishing of ordinary cast irons. |
| K30 | 8 | 90.5 | 14.70 | 2500 | 1.2~2.0 | Roughing of cast iron ,non-ferrous metals & alloys as well as non metallic materials at low cutting speed. |
